65 20 055 Removing and installing/replacing aerial base

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove AERIAL ROD
Completely remove left rear POWER WINDOW REGULATOR

Lever out aerial base cover (1) with special tool 00 9 317, lifting upwards, and remove.

Installation:

Retaining lugs on cover (1) must not be damaged.

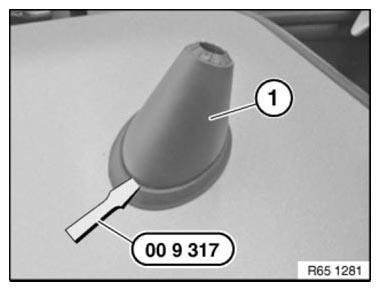

Fig 1: Removing Aerial Base Cover Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Press plugs (2) inwards.

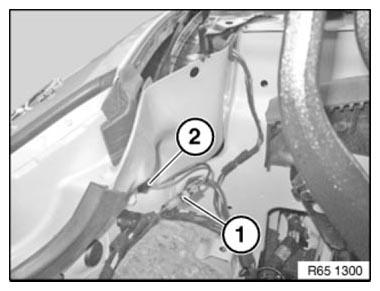

Fig 2: Identifying Plug With Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (1) on aerial base (2).

Remove screw connection (2) in upward direction.

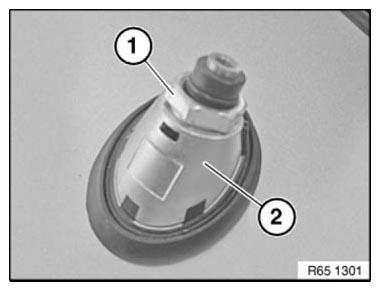

Fig 3: Identifying Nut On Aerial Base

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For purposes of clarity, illustration shows aerial base removed.

Feed out aerial base (1) downwards through body.

Installation:

Sealing lip (2) must be correctly seated on body.

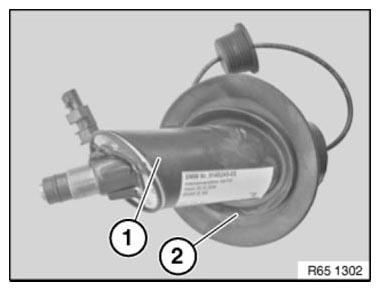

Fig 4: Identifying Aerial Base And Sealing Lip

Courtesy of BMW OF NORTH AMERICA, INC.
