54 37 045 Removing and installing/replacing roofliner for roof shell at rear

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Open convertible top until rear roofliner is accessible.

Unclip roofliner from roof shell.
Remove roofliner from roof shell.

Installation:

Thread in roofliner first in marked area.

Check roofliner for correct seating.

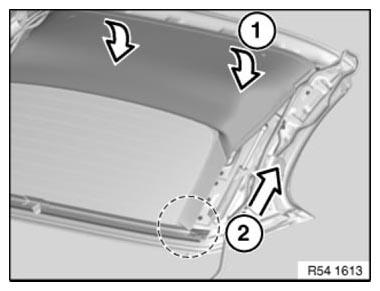

Fig 1: Removing Roofliner From Roof Shell

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Pre-install clips on roofliner.

After installing fold out roofliner seal.

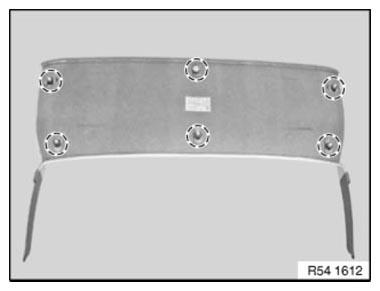

Fig 2: Identifying Clips On Roofliner

Courtesy of BMW OF NORTH AMERICA, INC.
