63 14 120 Removing and installing/replacing rear reflector (on rear bumper)

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Unclip reflector (1) from bumper trim (2) in area (3).

Pull reflector (1) out of guide and detach towards rear from bumper trim (2).

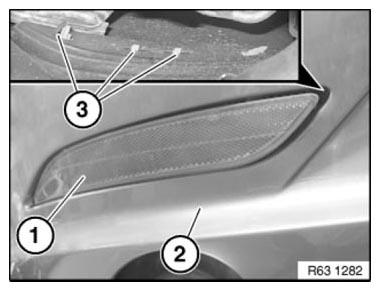

Fig 1: Identifying Reflector And Bumper Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) and guide (2) on rear reflector must not be damaged.

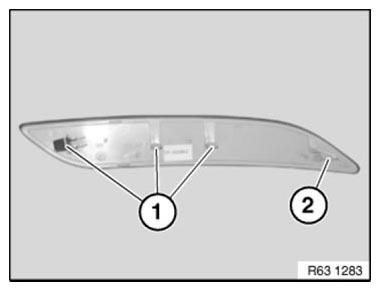

Fig 2: Identifying Catches And Guide On Rear Reflector

Courtesy of BMW OF NORTH AMERICA, INC.
