51 64 035 Removing and installing/replacing cross-member upper section (connection of both front wheel arches)
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove 13 71 000 REMOVING AND INSTALLING/REPLACING INTAKE FILTER HOUSING (N52K) or 13 71 000 REMOVING AND INSTALLING/REPLACING INTAKE FILTER HOUSING (N54) .

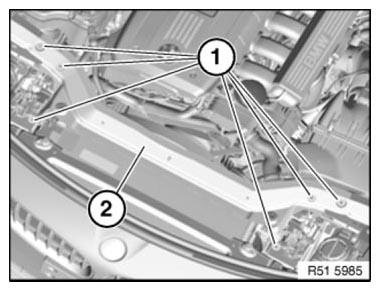

Release screws (1).
Tightening torque 51 71 23AZ .
Remove cross-member (2).
