51 49 000 Removing and installing or replacing trim for rear lid

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Remove warning triangle (1).

Release screws underneath.

Lift out expanding rivets (2).

US version only:

Pass emergency release (3) through rear lid trim (4).

Remove rear lid trim (4).

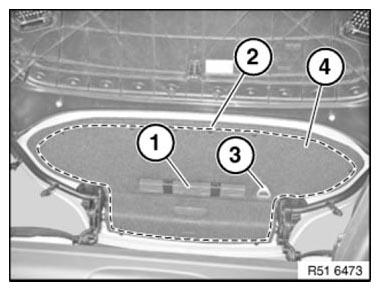

Fig 1: Identifying Warning Triangle, Expanding Rivets, Emergency Release And Rear Lid Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty expanding rivets (2).
