51 47 215 Removing and installing/replacing panel for luggage compartment side member on left

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove PANEL FOR LUGGAGE COMPARTMENT PARTITION

Unclip trim (1).

Lift out expanding rivets (2).

Remove panel for luggage compartment side member (3).

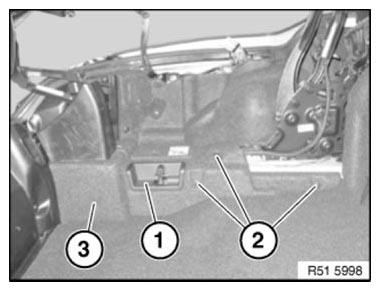

Fig 1: Identifying Luggage Compartment Side Member With Expanding Rivets And Trim

Courtesy of BMW OF NORTH AMERICA, INC.
