51 47 202 Removing and installing (replacing) cover for luggage compartment
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

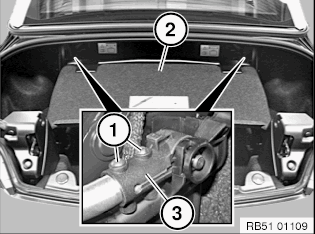

Release screws (1). Pull cover (2) out of holder (3) and remove.
Installation note: Loosen the holder (3) from the counter support and attach to cover (2). Insert screws (1), but do not tighten. Snap cover (2) with holder (3) into counter support. Tighten down screws (1).
