51 45 075 Removing and installing/replacing carrier for instrument panel

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove INSTRUMENT PANEL TRIM
Unclip wiring harness

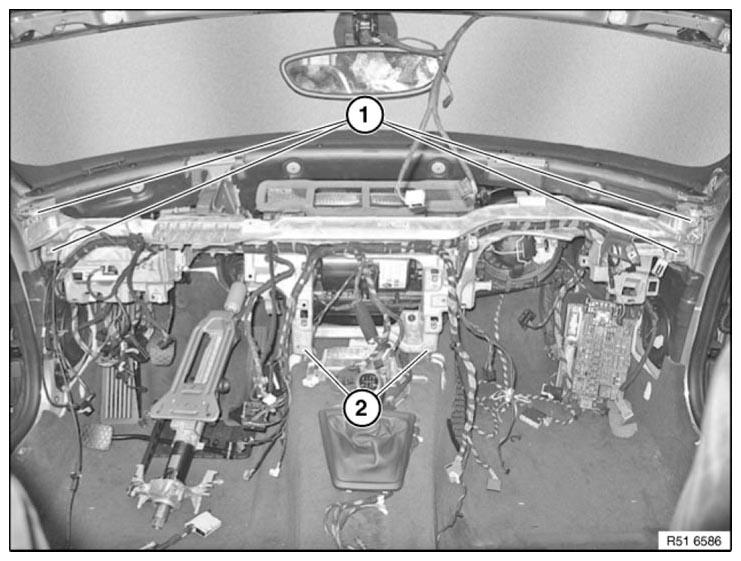

Fig 1: Identifying A-Pillar Nuts And Tunnel Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts (1) on A-pillar.

Tightening torque 51 45 4AZ .

Release screws (2) on tunnel.

Tightening torque 51 45 3AZ .

Release screws (1) on instrument panel carrier (2).

Tightening torque 51 45 3AZ .

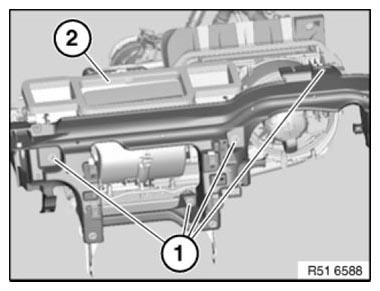

Fig 2: Identifying Screws On Instrument Panel Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on heater/air conditioner (2).

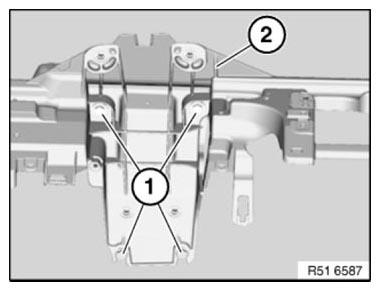

Fig 3: Identifying Screws On Heater/Air Conditioner

Courtesy of BMW OF NORTH AMERICA, INC.

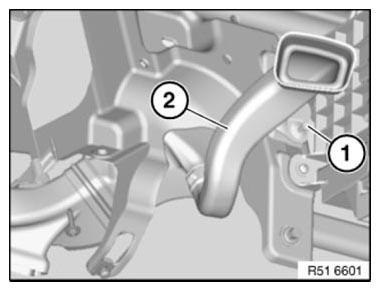

Remove expander rivets (1).

Remove air duct on left side (2).

Fig 4: Identifying Expander Rivets And Air Duct On Left Side

Courtesy of BMW OF NORTH AMERICA, INC.

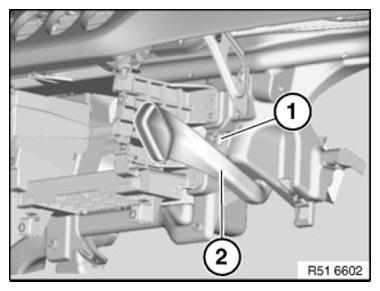

Remove expander rivets (1).

Remove air duct on right side (2).

Fig 5: Identifying Expander Rivets And Air Duct On Right Side

Courtesy of BMW OF NORTH AMERICA, INC.
