51 16 212 Removing and installing trim for storage compartment
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

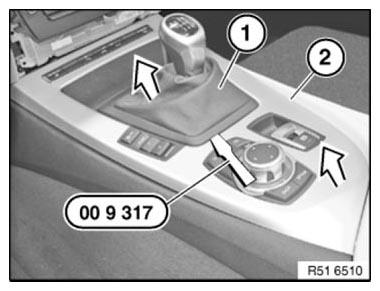

Lever off gaiter trim (1) upwards with special tool 00 9 317.
Lever off trim for storage compartment (2) towards top.
Unlock cable connections underneath and disconnect.
Remove trim for storage compartment (2).
