51 99 510 Removing and installing rear number/license plate

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1) and remove number/license plate.

Installation:

Screw number/license plate directly onto rear bumper (2).

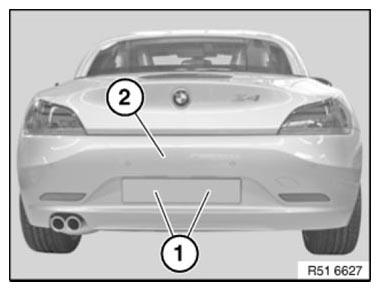

Fig 1: Identifying Rear Bumper With Screws
G06911579Courtesy of BMW OF NORTH AMERICA, INC.
