51 12 050 Removing and installing/replacing carrier for rear bumper trim

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove rear BUMPER TRIM

Release nuts (1) on left and right.

Remove carrier (2) straight towards rear.

Tightening torque 51 12 3AZ .

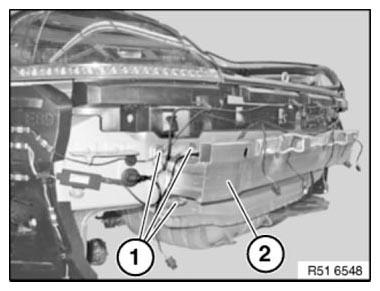

Fig 1: Identifying Rear Bumper Trim Nuts And Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, remove sealing plate (1) between carrier and body (2).

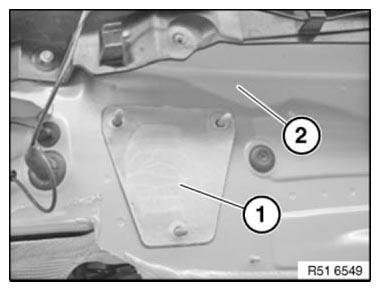

Fig 2: Identifying Sealing Plate On Body

Courtesy of BMW OF NORTH AMERICA, INC.
