51 11 183 Removing and installing/replacing ornamental grille in bumper trim (side left or right)

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove front BUMPER TRIM

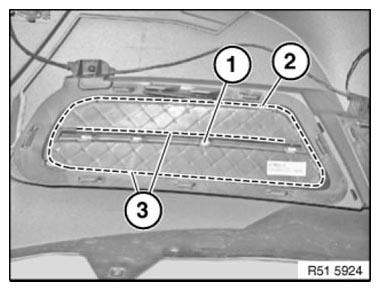

Unclip trim rod (1) and trim frame (2) in area (3) and remove towards front.

Fig 1: Identifying Trim Rod And Trim Frame Area

Courtesy of BMW OF NORTH AMERICA, INC.

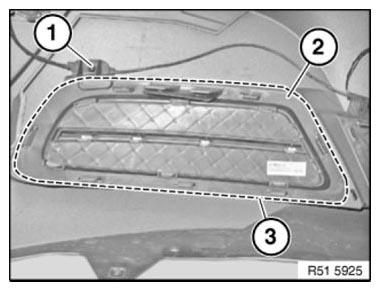

Release cable connection (1).

Unclip ornamental grille (2) in area (3) and remove.

Fig 2: Identifying Cable Connection With Ornamental Grille Area

Courtesy of BMW OF NORTH AMERICA, INC.
