36 11 115 Removing and installing/replacing RDC receiving aerial

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove front left underbody panelling

Disconnect plug connection (1).

Gently press retaining tabs apart in direction of arrow and remove RDC aerial (2).

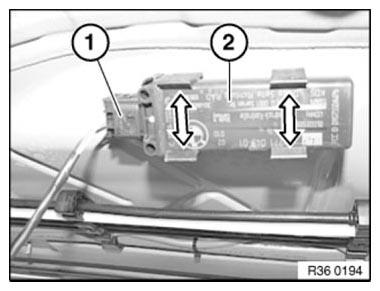

Fig 1: Removing RDC Aerial

Courtesy of BMW OF NORTH AMERICA, INC.
