Necessary preliminary tasks

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Read and comply with GENERAL INFORMATION .

IMPORTANT: Do not kink vacuum line. Vacuum line and brake lines must not touch each other in area of brake booster!

Detach vacuum line from brake booster.

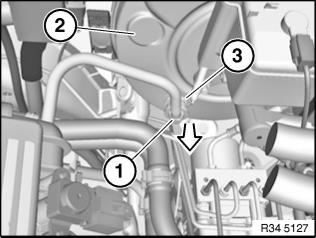

Fig 1: Detaching Vacuum Line From Brake Booster

Courtesy of BMW OF NORTH AMERICA, INC.

Installation: Check seal, replace if necessary.

Pull off vacuum hose. Unclip vacuum line from holder. Disconnect snap fastener and remove vacuum line. Installation: Snap fastener must be felt and heard to snap into place.

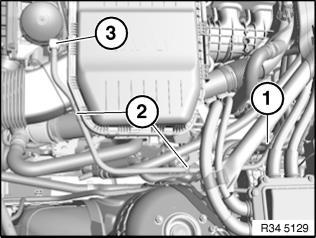

Fig 2: Identifying Snap Fastener And Vacuum Line

Courtesy of BMW OF NORTH AMERICA, INC.
