Necessary preliminary tasks
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
- Read and comply with GENERAL INFORMATION .
IMPORTANT:
Do not kink vacuum line.
Vacuum line and brake lines must not touch each other in area of brake booster!
Contact with surrounding components is only permitted at the designated toothed rings!
Vacuum line and brake lines must not touch each other in area of brake booster!
Contact with surrounding components is only permitted at the designated toothed rings!
Detach vacuum line (1) from brake booster (2).
Installation:
Check seal (3), replace if necessary.

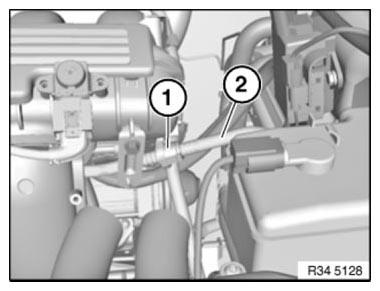

Release quick-release coupling (1).
Installation:
Snap fastener must be felt and heard to snap into place.
Remove vacuum line (2).
