25 12 060 Replacing gearshift lever knob for twin-clutch gearbox N54

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

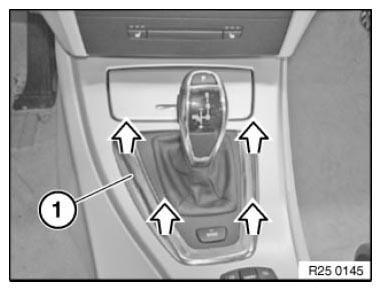

Release installation frame (1) from center console.

Fig 1: Removing Installation Frame From Centre Console

Courtesy of BMW OF NORTH AMERICA, INC.

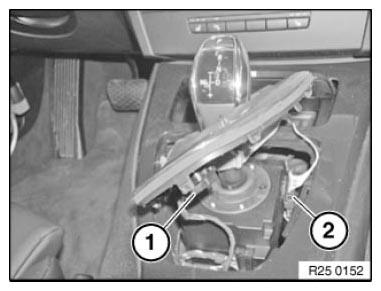

Disconnect plugs (1) and (2).

Fig 2: Identifying Plugs

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Do not twist shift lever knob during removal as this would cause the antitwist lock in the knob to shear off.

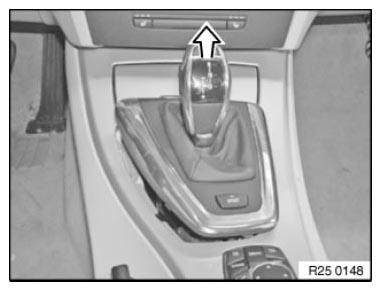

Tug firmly to remove knob.

Installation

Fit shift lever knob on shift lever, align and press on until it snaps noticeably into place.

Fig 3: Removing Knob

Courtesy of BMW OF NORTH AMERICA, INC.
