25 11... Replacing U-gaiter
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove SHIFT LEVER

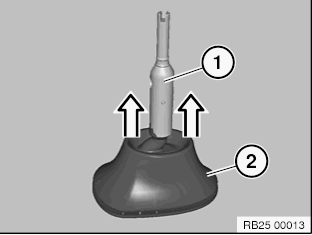

Detach U-gaiter from shift lever.
Installation

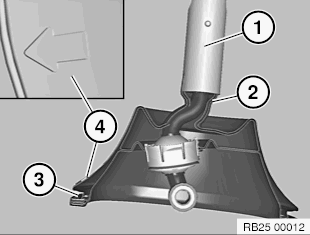

- Degrease shift lever (1)
- Coat U-type bellows at the shaped element (2) with Circolight on the inside.
- Pull the U-type bellows over the gearshift lever (1) from the top and align.
- The arrow (4) on the U-type bellows must point in the direction of travel.
Key:
- Gearshift lever
- U-type bellows shaped element
- U-type bellows lip
- Position mark/arrow
