25 11 235 Replacing bearing bushes for shift arm
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove SHIFT ARM

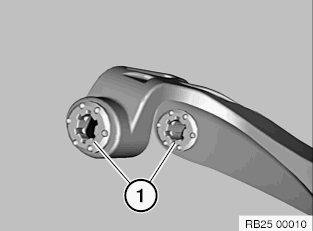

- Press out bearing bush (1).
- Coat new bearing bush with Circolight
- Then press into shift arm until side surface of bush protrudes uniformly.
