25 11 071 Replacing knob for shift lever

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Pull installation frame of gaiter (1) from front upwards out of center console.

IMPORTANT: Do not use a tool, as this would damage the installation frame or the center console.

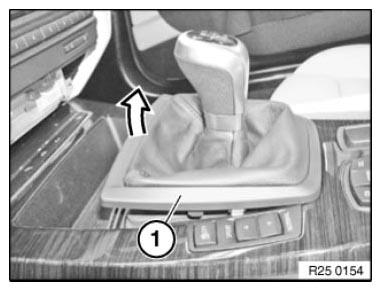

Fig 1: Pulling Gaiter Installation Frame From Centre Console

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Do not twist knob during removal as this would cause the turning lock in the knob to shear off.

Tug firmly to remove knob.

Installation

Fit knob on shift lever, align and press on until it snaps noticeably into place.

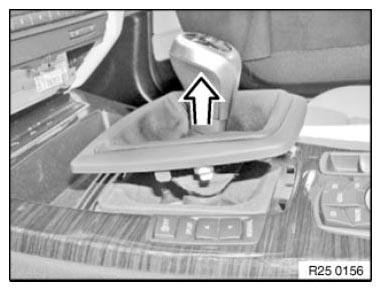

Fig 2: Removing Knob

Courtesy of BMW OF NORTH AMERICA, INC.
