23 00... Overview of transmission housing (GS6-53BZ/DZ)
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

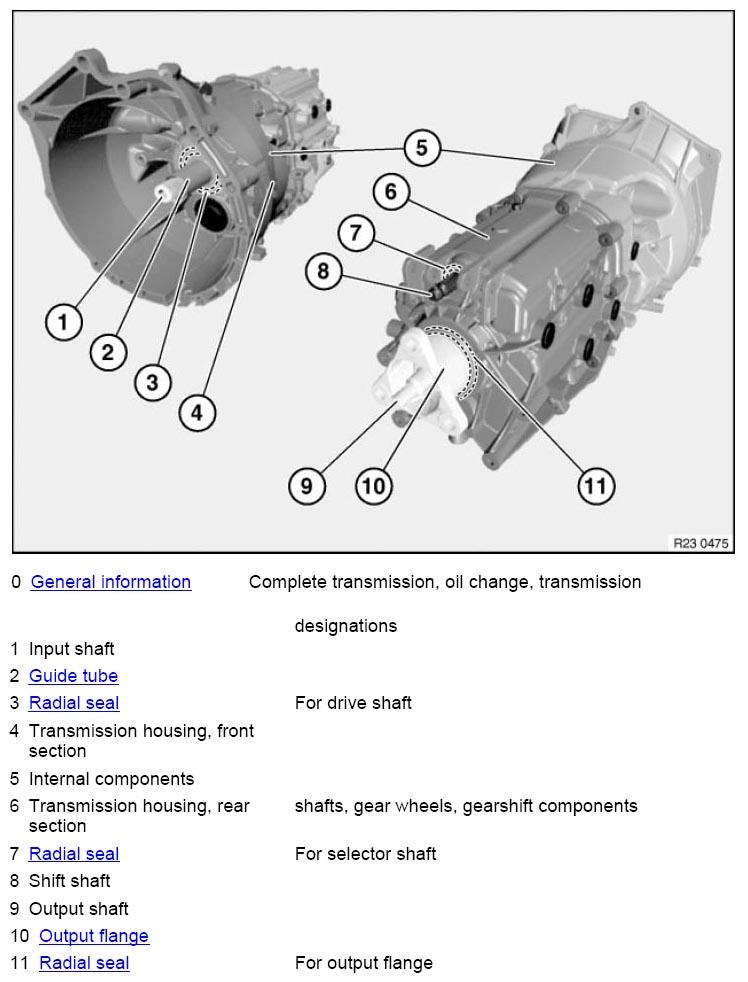

TRANSMISSION HOUSING COMPONENTS
| General information | Complete transmission, oil change, transmission designations |
| 1 Input shaft | |
| 2. Guide tube | |
| 3. Radial seal | For drive shaft |
| 4 Transmission housing, front section | |
| 5 Internal components | |
| 6 Transmission housing, rear section | shafts, gear wheels, gearshift components |
| 7 Radial seal | For selector shaft |
| 8 Shift shaft | |
| 9 Output shaft | |
| 10 Output flange | |
| 11 Radial seal |
