13 31 029 Checking fuel delivery pressure (N54, N54T)

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work

Connect BMW diagnosis system.

IMPORTANT: Lines are under pressure!

Wear protective goggles and gloves.

Fuel can emerge spontaneously at high velocity when the fuel line is released!

Recycling

Catch and dispose of escaping fuel with auxiliary materials.

Observe country-specific waste disposal regulations.

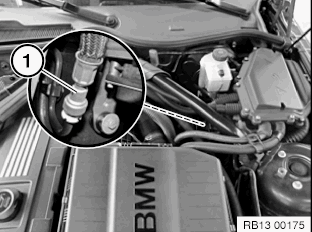

Disconnect snap fastener (1) of fuel line.

Fig 1: Disconnecting Snap Fastener Of Fuel Line

Courtesy of BMW OF NORTH AMERICA, INC.

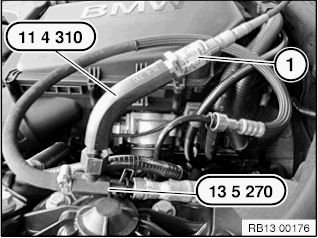

Insert special tool 13 5 270 into disconnected fuel line. Screw onto special tool 13 5 270, the special tool 11 4 310. Screw IMIB 100 bar pressure sensor (1) on the special tool 11 4 310.

NOTE: As an alternative to the 100 bar IMIB pressure sensor (1), the 25 bar pressure sensor can also be used. For this, screw on special tool 11 5 364 instead of special tool 11 4 310 into special tool 13 5 270. Or directly screw the pressure manometer from the set of special tools 13 3 060 onto the special tool 13 5 270.

Fig 2: Identifying Pressure Sensor And Special Tools 11 4 310 And 13 5 270

Courtesy of BMW OF NORTH AMERICA, INC.

Establish fuel delivery pressure. Read off fuel delivery pressure on IMIB and compare with values in diagnosis system.
