11 31 025 Removing and installing/replacing intake camshaft (N54/N54T)

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Risk of damage!

It is absolutely essential to follow an exact procedure for removing and installing the exhaust camshaft.

The upper and lower bearing strips must be pre-tensioned with a total of six special tools 11 8 553.

Special tool 11 8 550 can be used for intake and exhaust sides.

Necessary preliminary tasks:

Remove CYLINDER HEAD COVER

Remove INTAKE ADJUSTER of intake camshaft

Release bearing cap screw connections from outside inwards.

Lift out lower and upper bearing strips (1) with camshaft.

NOTE: Graphic shows N52.

Fig 1: Lifting Lower And Upper Bearing Strips With Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Remove upper bearing shell.

Remove intake camshaft (1) marked with (E).

Fig 2: Identifying Marked Inlet Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Both camshafts have different markings.

Mixing up the two camshafts will result in engine damage.

A Exhaust camshaft

E Intake camshaft

Fig 3: Identifying Exhaust And Inlet Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

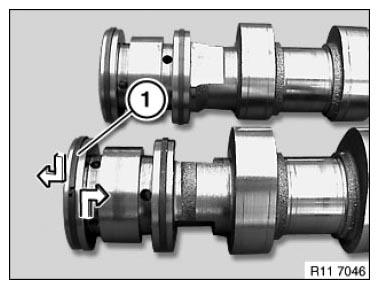

IMPORTANT: Plain rectangular compression rings (1) can easily break.

Plain rectangular compression rings (1) are engaged at joint.

Press plain compression rings (1) apart upwards and downwards and removed towards front.

Fig 4: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Removal on engine:

Engine at cylinder no. 1 firing TDC position.

Removed cylinder head:

When using special tool 11 9 000 , it will be necessary to remove the aluminum strip.

Installing camshaft bearing strip

Pre-install special tool 11 8 551 on cylinder nos. 2 and 3.

Insert special tool 11 8 552 in screw connection of cylinder head cover.

Special tool 11 8 551 is marked with letters E and A.

E= Intake side

A= Exhaust side

Press down roller cam follower on cylinder no. 3 with spindle nut (2) of special tool 11 8 551.

Fig 5: Identifying Special Tools 11 8 551 And 11 8 552

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Before installing intake camshaft, make sure roller cam follower is correctly seated on hydraulic valve clearance compensating element and valve.

Fig 6: Identifying Cam Follower Seat

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Pre-install bearing strip of intake camshaft.

Lubricate all bearing points in lower bearing strip with engine oil.

Installation note:

Lay intake camshaft (1) in bearing strip.

Fig 7: Identifying Marked Inlet Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Rotate intake camshaft (1) at cylinder no. 1 into position (2).

Fig 8: Identifying Inlet Camshaft With Position

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Lower and upper bearing strips must be aligned to each other at ground surfaces (1 and 2).

Bring thrust piece and legs of special tools 11 8 553 into contact at milled surfaces.

Fig 9: Identifying Bearing Strips

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Schematic depiction of special tool 11 8 553 at lower bearing strip (1) and upper bearing strip (2).

IMPORTANT: Tighten screw (3) on thrust piece to 2 Nm.

Fig 10: Identifying Special Tool 11 8 553 Schematic Depiction On Bearing Strips

Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 11 8 553 over screw connection of bearing strips.

Make sure that legs come into exact contact on ground surfaces, lower bearing strip (1) and upper bearing strip (2).

Fig 11: Positioning Special Tool 11 8 553 Over Bearing Strips Screw Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Initially tighten screw of special tool 11 8 553 to ground surfaces of lower bearing strip (1) and upper bearing strip (2).

IMPORTANT: Tighten screws on thrust piece to 2 Nm.

Fig 12: Tightening Screw Of Special Tool 11 8 553

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Set special tool 11 4 350to 2 Nm.

Pre-tension all special tools 11 8 553 with special tool 11 4 350 only.

Fig 13: Identifying 11 4 350 Torque Wrench

Courtesy of BMW OF NORTH AMERICA, INC.

Install upper and lower bearing strips (1).

Pre-install all special tools 11 8 553.

IMPORTANT: Secure special tool 11 8 553 to max. 2 Nm.

Fig 14: Identifying Upper And Lower Bearing Strips With Special Tools 11 8 553

Courtesy of BMW OF NORTH AMERICA, INC.

Install intake camshaft with bearing strips (1) on cylinder head.

Fig 15: Identifying Bearing Strips On Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

Check position of intake camshaft (1) at cylinder no. 6.

Roller cam follower (2) is not actuated.

Fig 16: Identifying Intake Camshaft And Roller Cam Follower

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten lower and upper bearing strips with special tool 00 9 120 .

Tightening torque 11 31 1AZ .

IMPORTANT: Remove special tool 11 8 553 only when camshaft screw connection is completed.

Fig 17: Tightening Lower And Upper Bearing Strips Using Special Tool 00 9 120

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust VALVE TIMING .

Assemble engine.
