11 28 020 Replacing tensioning device for alternator drive belt (S63)
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 11 0 390 .
Necessary preliminary tasks:
- Remove alternator DRIVE BELT .
If necessary, remove special tool 11 0 390 .

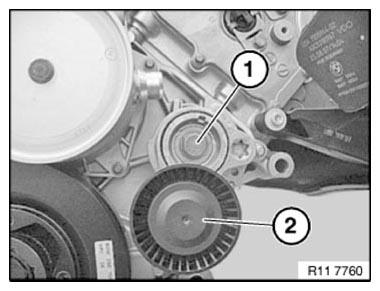

Release screw (1).
Tightening torque 11 28 1AZ .
Remove belt tensioner with idler pulley (2).
Assemble engine.
