11 28 010 Replacing drive belt for alternator (N55 Hybrid)
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 11 0 390 .
WARNING:
High-voltage hazard!
The following must be strictly observed prior to starting work :
- Observe SAFETY INFORMATION for handling hybrid cars.
Necessary preliminary work:
- Remove FAN COWL with electric fan.
NOTE:
Mark the direction of travel of the drive belt if it is to be reused.

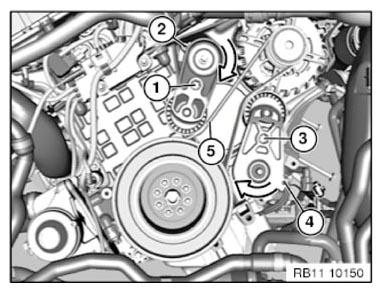

Turn belt tensioner (1) in direction of arrow until bore hole (2) is aligned with belt tensioner and crankcase.
Hold belt tensioner (1) under tension.
Secure with special tool 11 0 390 .
Turn belt tensioner (3) in direction of arrow until bore hole (4) is aligned with belt tensioner and crankcase.
Hold belt tensioner (3) under tension.
Secure with special tool 11 0 390 .
Remove drive belt (5).
Assemble engine.
Installation note:
Check drive belt for correct installation position and, if reusing, observe direction of travel. Risk of damage .
