11 44 000 Removing and installing/replacing oil-to-water heat exchanger (N55)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Risk of scalding!

Only perform this repair work on an engine that has cooled down.

Recycling:

Catch and dispose of drained coolant.

Observe country-specific waste disposal regulations.

Necessary preliminary tasks:

Remove ENGINE COVER .
Drain COOLANT .

Release coolant hose (1).

Unfasten screws (2).

Tightening torque: 11 42 3AZ .

Installation note:

Replace all gaskets.

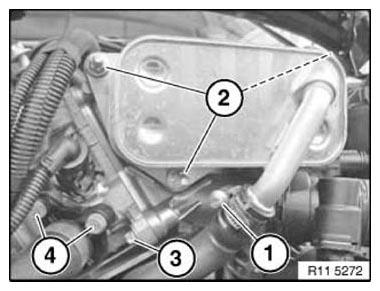

Fig 1: Identifying Full Flow Oil Filter Hose Clamp And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Installation note:

BLEEDING INSTRUCTION must be observed without fail.

Fill COOLING SYSTEM .
