11 14 015 Removing and installing/replacing sealing cap for oil pump chain tensioner (N55)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary work:

Remove FAN COWL .
Remove DRIVE BELT for alternator.
Remove VIBRATION DAMPER .

Drive out sealing cap (1) with a suitable punch (2) in direction of arrow.

NOTE:

The sealing cap is driven out diagonally during this operation.

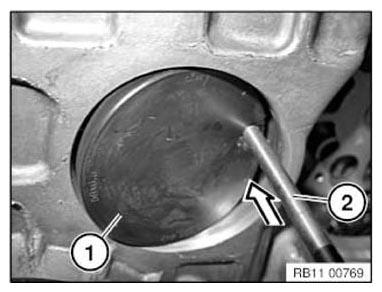

Fig 1: Removing Oil Pump Chain Tensioner Sealing Cap Using Suitable Punch

G11165363

Courtesy of BMW OF NORTH AMERICA, INC.

Removing sealing cap:

Prepare special tool 11 8 530 .

Remove special tool 11 8 533 from special tool 11 8 532 and 11 8 534 .

Special tool 11 8 536 is not required.

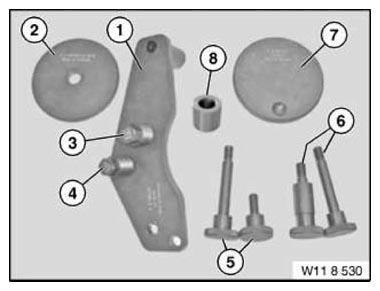

Fig 2: Identifying Special Tools

G11165364

Courtesy of BMW OF NORTH AMERICA, INC.

Special tool 2 318 118 is magnetic.

Secure special tool 2 318 118 on special tool 11 8 531 (refer to illustration).

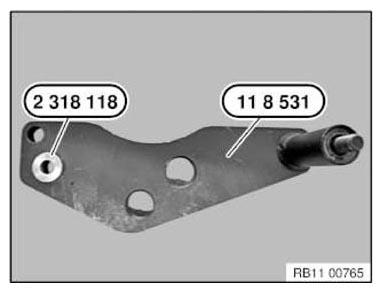

Fig 3: Securing Special Tools (2 318 118) And (11 8 531)

G11165365

Courtesy of BMW OF NORTH AMERICA, INC.

Screw back screw (2) on special tool 2 318 119 .

Install special tool 2 318 119 with screw (1) on special tool 11 8 531 .

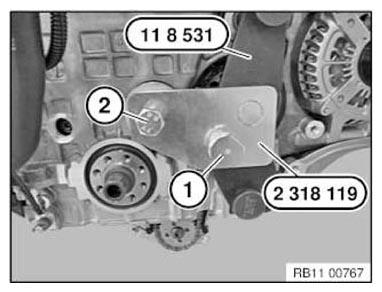

Fig 4: Installing Special Tool (2 318 119) Using Screw

G11165366

Courtesy of BMW OF NORTH AMERICA, INC.

Position sealing cap (1) on crankcase (2).

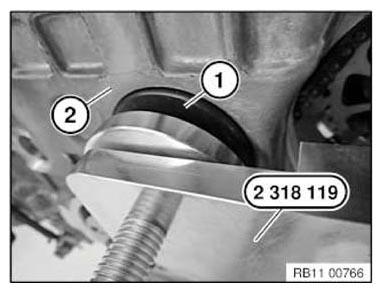

Fig 5: Positioning Sealing Cap On Crankcase

G11165367

Courtesy of BMW OF NORTH AMERICA, INC.

Installing sealing cap:

Screw in screw (1) on special tool 2 318 119 up to limit position.

Tightening torque 20 Nm.

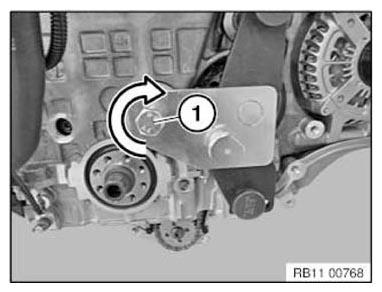

Fig 6: Installing Oil Pump Chain Tensioner Sealing Cap Screw

G11165368

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
