72 11 097 Removing and installing/replacing rear middle lower strap (comfort seat)

Necessary preliminary tasks:

• Partially remove SEAT COVER WITH UPHOLSTERY

Slightly raise seat cover with upholstery.

Unfasten plug connection (1) and disconnect.

Fig 1: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

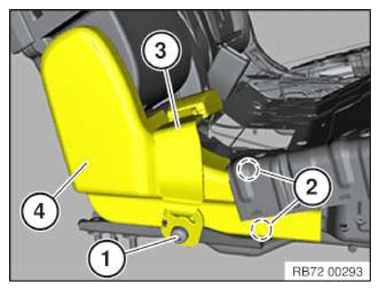

Release screw (1).

Tightening torque 72 11 27AZ .

Unfasten screws (2).

Remove lower strap (3) together with trim (4) towards the outer rear.

Fig 2: Identifying Lower Strap Screws

Courtesy of BMW OF NORTH AMERICA, INC.
