SI number

06 04 03 (046)

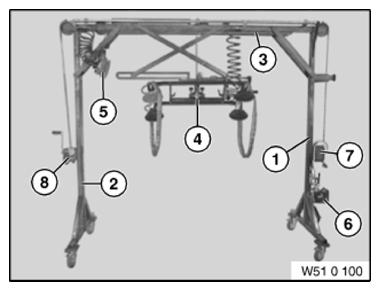

Fig 1: Identifying Device (510100)

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 0494847 Support

NOTE: (Right support right) portal crane. Cannot be ordered individually, only available as part of complete set 51 0 100 (0 494 821).

2 = 0494848 Support

NOTE: (Left support) Portal crane. Cannot be ordered individually, only available as part of complete set 51 0 100 (0 494 821).

3 = 0494849 Bridge

NOTE: Cannot be ordered individually, only available as part of complete set 51 0 100 (0 494 821).

4 = 0494850 Fixture

NOTE: (windscreen/rear window support) Portal crane. Cannot be ordered individually, only available as part of complete set 51 0 100 (0 494 821).

5 = 0494851 Fixture

NOTE: (side window mounting) for portal crane Cannot be ordered individually, only available as part of complete set 51 0 100 (0 494 821).

6 = 0494852 Pump

NOTE: (vacuum pump) for portal crane Cannot be ordered individually, only available as part of complete set 51 0 100 (0 494 821).

7 = 0494853 Cable winch

NOTE: for windscreen/rear window mounting on portal crane Cannot be ordered individually, only available as part of complete set 51 0 100 (0 494 821).

8 = 0494854 Cable winch

NOTE: for side window mounting on portal crane Cannot be ordered individually, only available as part of complete set 51 0 100 (0 494 821).

9 = 0494855 Suction cup

NOTE: (1 pieces) for portal crane. Can again be ordered separated via BMW ordering system since 08/2011 - 83 30 0 494 855.
