Removing and installing/replacing bumper aerial for comfort access system (X5 M)

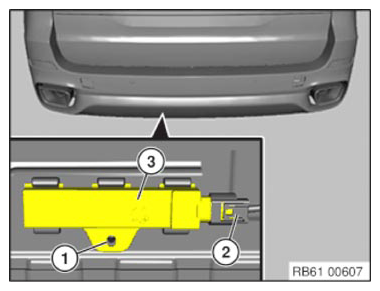

Release screw (1).

Unfasten plug connection (2) and disconnect.

Remove bumper aerial (3) from bracket.

Installation note:

Make sure bumper aerial (3) is seated correctly in bracket.

Courtesy of BMW OF NORTH AMERICA, INC.
