61 31 197 Removing/installing (replacing) center console control panel (M5 with twin-clutch gearbox)
IMPORTANT:
Observe NOTES ON PROTECTION FROM ELECTROSTATIC DISCHARGE .
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.
Necessary preliminary tasks:
- Remove CENTER CONSOLE TRIM

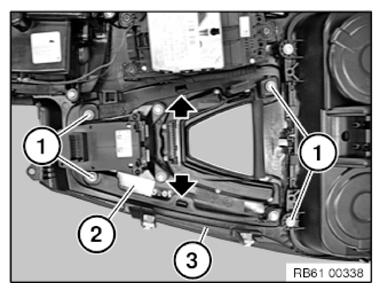

Release screws (1).
Release latch mechanisms.
Remove center console operating facility (2) from center console cover (3).
Installation note:
Latch mechanisms must not be damaged or missing.
Replacement:
Remount ELECTROMECHANICAL PARKING BRAKE .
