61 35 953 Removing and installing/replacing interior aerial/antenna for comfort access system (front center console)

Necessary preliminary tasks:

Unlock and remove interior aerial for comfort access system (1) from center console panel (2).

Installation:

Make sure interior antenna for comfort access system seat adjustment (1) is correctly seated.

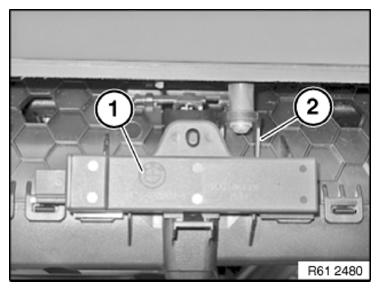

Fig 1: Identifying Center Console Panel

Courtesy of BMW OF NORTH AMERICA, INC.
