61 13... In-line plugs, 6- to 50-pin, System Elo

Open lock.

Fig 1: Opening Connector Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Detach cable strap.

Installation note:

Cable strap must be reinstalled.

Fig 2: Cable Strap

Courtesy of BMW OF NORTH AMERICA, INC.

Detach catch (1) from connector housing (2).

Fig 3: Detaching Catch From Plug Housing

Courtesy of BMW OF NORTH AMERICA, INC.

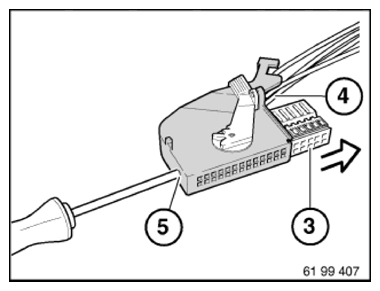

Press out contact carrier (3) with wiring harness (4) through opening (5).

Fig 4: Pressing Contact Carrier With Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.

Hold down retaining hook (6) of defective contact and pull cable and contact up to secondary lock (8).

Fig 5: Pulling Connector Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Hold down retaining hook once again in secondary lock (8) and pull cable and contact completely out of contact carrier.

Fig 6: Pulling Connector Cable Out Of Contact Carrier

Courtesy of BMW OF NORTH AMERICA, INC.
