61 13... Circular plugs, 4-, 7-, 10- 12-, 25-pin, System D1.5/D2.5

Special tools required:

• 61 0 303

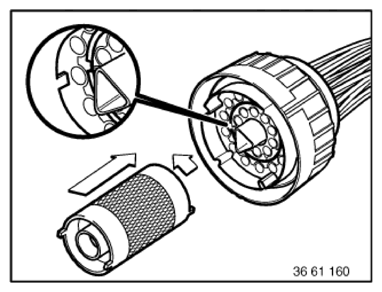

Insert special tool with suitable connection side in connector and twist approx. 3° anticlockwise.

Fig 1: Inserting Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

The connector is locked down if retaining lug (3) is located in locking groove (2).

1. Unlocking groove
2. Locking groove
3. Retaining lug
   Fig 2: Retaining Lug, Locking And Unlocking Groove

   Courtesy of BMW OF NORTH AMERICA, INC.

With special tool 61 0 303 press back retaining hook (4) of corresponding contact and pull out cable with contact.

Fig 3: Pressing Back Retaining Hook

Courtesy of BMW OF NORTH AMERICA, INC.
