17 11 150 Removing and installing/replacing auxiliary radiator (N55)
Necessary preliminary tasks:
- Remove FRONT SECTION OF WHEEL ARCH COVER on left.
WARNING:
Risk of scalding!
Only perform this repair work after engine has cooled down.
Only perform this repair work after engine has cooled down.
IMPORTANT:
Wear safety goggles and protective gloves.
Recycling:
Coolant emerges when coolant lines are detached. Catch and dispose of escaping coolant in a suitable container.
Observe country-specific waste disposal regulations.

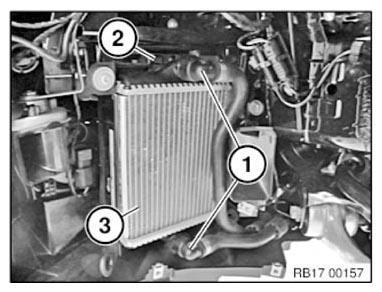

Detach coolant lines (1).
Catch and dispose of escaping coolant.
Release clip (2).
Removing auxiliary coolant cooler (3).
Installation note:
Check coolant hoses for damage.
NOTE:
After completion of repair work, check coolant level.
If necessary, ADD COOLANT .
Reassemble the vehicle.
If necessary, ADD COOLANT .
Reassemble the vehicle.
