51 76 030 Removing and installing/replacing engine compartment lid gasket

Removal:

Release screw (1).

Remove cover (2) towards top.

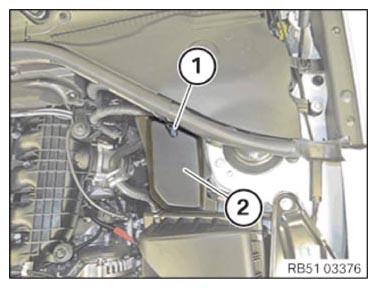

Fig 1: Cover And Screw

G10148326

Courtesy of BMW OF NORTH AMERICA, INC.

Left and right gasket:

Release expanding rivet (1).

Remove gasket (2) in direction of arrow.

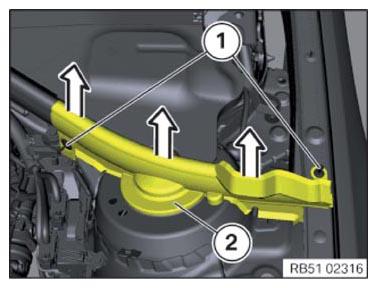

Fig 2: Removing Engine Compartment Lid Gasket

G10148327

Courtesy of BMW OF NORTH AMERICA, INC.

Center gasket

Detach cable (1) from gasket (2).

Remove gasket (2) in direction of arrow.

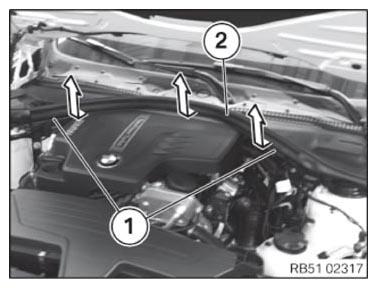

Fig 3: Detaching Cable From Gasket

G10148328

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Center gasket

Attach cable (1) in the gasket (2).

Mount gasket (2).

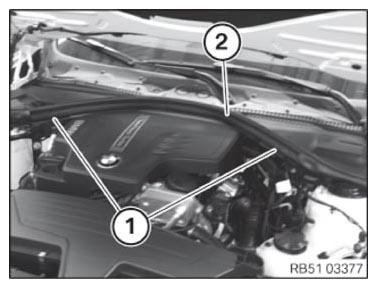

Fig 4: Cable And Gasket

G10148329

Courtesy of BMW OF NORTH AMERICA, INC.

Left and right gasket:

Mount gasket (2).

Mount expanding rivets (1).

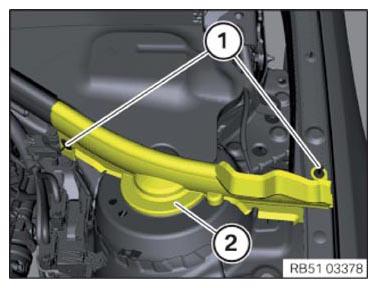

Fig 5: Gasket And Expanding Rivets

G10148330

Courtesy of BMW OF NORTH AMERICA, INC.

Install cover (2).

Tighten screw (1).

Fig 6: Cover And Screw

G10148326
