51 71 447 Removing and installing or replacing trim panel for cover on left or right side member

Necessary preliminary tasks:

Release expanding rivet (1).

Fig 1: Expanding Rivet

Courtesy of BMW OF NORTH AMERICA, INC.

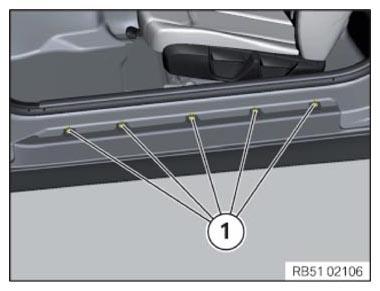

Release screws (1).

Fig 2: Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip trim panel (1) at front and rear.

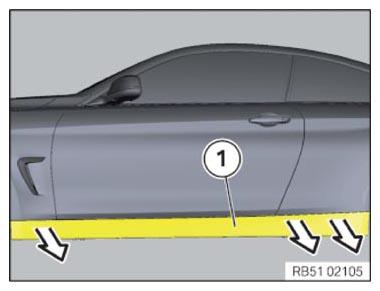

Open the door and remove the trim panel (1) in direction of arrow and remove.

Fig 3: Removing Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Latch mechanisms (1) on holder (2) must not be damaged.

Fig 4: Latch Mechanisms On Holder

Courtesy of BMW OF NORTH AMERICA, INC.
