51 21 125 Removing and installing/replacing support for left or right outer door handle with lock barrel

Necessary preliminary tasks:

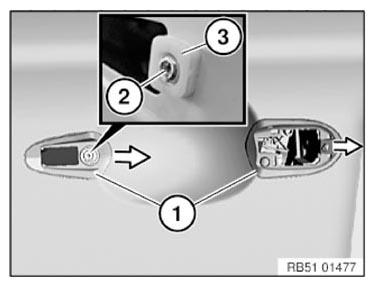

Remove seals (1) in direction of arrow.

Release screw (2) and remove holder (3) to outside.

Fig 1: Removing Outer Door Handle With Lock Barrel Seals

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, release cable clip from support (1).

Remove inner support (1) in direction of arrow and feed out of door.

Fig 2: Removing Inner Support

Courtesy of BMW OF NORTH AMERICA, INC.

For version with Comfort Access/light package:

Release cable clip (1) from support (2).

Disconnect plug connection (3).

Fig 3: Releasing Cable Clip From Support

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

For it to be possible to install the door lock, locking pin (1) must be in the installation position on the support (2).

Fig 4: Installing Door Lock Locking Pin On Support

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

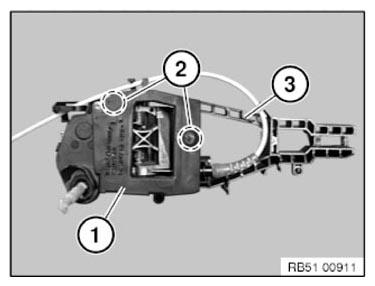

Release sound cover (1) at clips (2) and maneuver out of support (3).

Fig 5: Releasing Sound Cover Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Unclip Bowden cable (1) in area (A) and maneuver out of support (2).

Installation note:

Ensure that the Bowden cable (1) is correctly routed at support (2).

For version with Comfort Access/light package:

Fig 6: Removing Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.
