51 11 060 Removing and installing/replacing support for front lower bumper panel

Necessary preliminary tasks:

F20/F21 only:

Version with air duct:

Unscrew bolts (1) and expanding rivet (2).

Remove air duct (3).

NOTE: Schematic diagram shows the right side. Perform repair work on the left side in the same manner.

Fig 1: Air Duct, Bolts And Expanding Rivet

Courtesy of BMW OF NORTH AMERICA, INC.

Version with ACC:

Release screws/blind rivet (1).

Installation note:

Blind rivet nuts and associated screws are used as repair solution for defective threads or installed blind rivet.

Adhere to the NOTES on mounting blind rivet nuts.

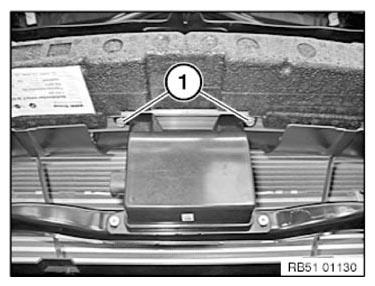

Fig 2: Screws And Blind Rivet

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque: 51 11 10AZ .

Remove support (2) in direction of arrow.

Fig 3: Removing Front Lower Bumper Panel Support

Courtesy of BMW OF NORTH AMERICA, INC.

In the case of replacement ACC version:

Drill out blind rivets (1).

Modify holder (2) with ACC sensor.

Adjust ACC sensor.

Fig 4: ACC Sensor Holder And Blind Rivets

Courtesy of BMW OF NORTH AMERICA, INC.
