51 11 050 Removing and installing/replacing support for front bumper panel

Necessary preliminary tasks:

• Remove front bumper panel
• Remove the impact absorber from the support
• Remove right/left headlight  . See 63 12 010 REMOVING AND INSTALLING (REPLACING) LEFT (XENON) HEADLIGHT or 63 12 003 REMOVING AND INSTALLING (REPLACING) LEFT HEADLIGHT .

Release screws (1) on left/right.

Tightening torque: 51 11 4AZ .

Remove support (2) towards front.

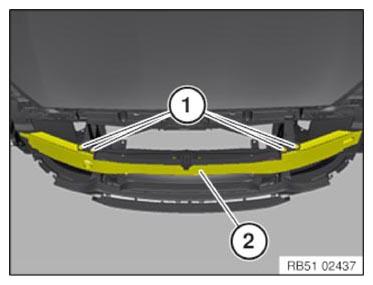

Fig 1: Front Bumper Panel Support And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
