51 31 015 Repairing damage to windscreen caused by stone chips (clear and tinted laminated safety glass)

Field of vision (no repairs acceptable):

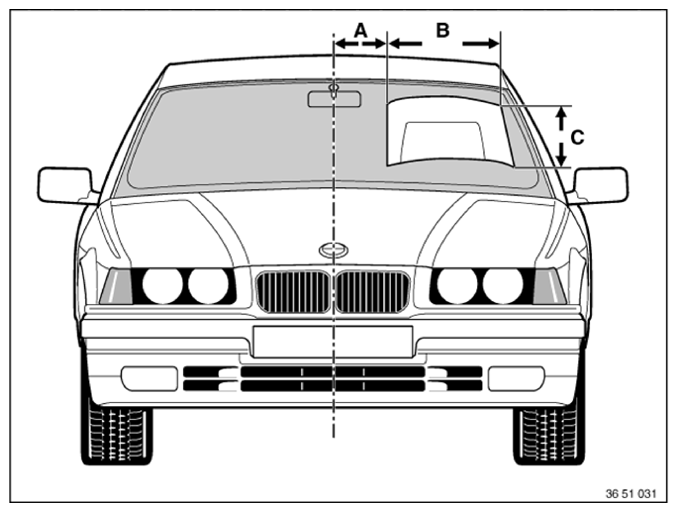

Fig 1: Checking Gap Between Vehicle Center And Vision Field

Courtesy of BMW OF NORTH AMERICA, INC.

50 mm (gap between field of view/center of vehicle)
Up to end of wiper range, outside (field of view width)
Restriction by wiper range (field of view height)

IMPORTANT: Repairs must only be carried out outside of the field of vision (refer to sketch).
If the stone chip damage is outside the field of vision, refer to REPAIR INSTRUCTION .
