41 61 543 Bonnet Hinges Repair

WARNING: Adhere to the following SAFETY INFORMATION so as to avoid a danger of injury by the actuator.
The BATTERY EARTH LEAD must be clamped off prior to work on the hinge or engine compartment lid.
Use suitable tool to support bonnet in the fully opened position. Risk of injury.

Necessary preliminary work:

Disconnect BATTERY EARTH LEAD

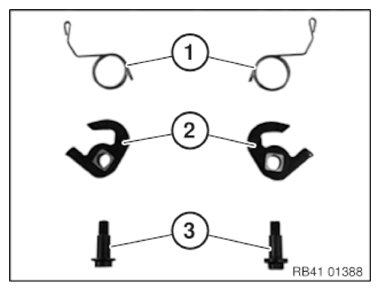

The following new body parts are required:

Bonnet hinge repair kit consisting of:
Spring
Lever
Bolt

Fig 1: Identifying Spring, Lever And Bolt
Courtesy of BMW OF NORTH AMERICA, INC.

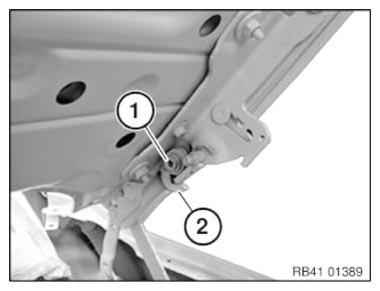

Open bonnet and support in the fully opened position with a suitable device.

Release screw (1) and remove lever (2).

Fig 2: Identifying Lever And Screw

G10142129

Courtesy of BMW OF NORTH AMERICA, INC.

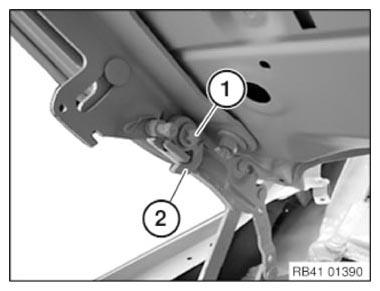

Attention.

Left-hand thread.

Release screw (1) and remove lever (2).

Fig 3: Identifying Lever And Screw

G10142130

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

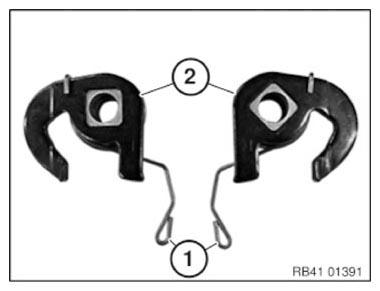

Insert springs (1) in levers (2) for left and right sides.

Fig 4: Identifying Levers And Springs

G10142131

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

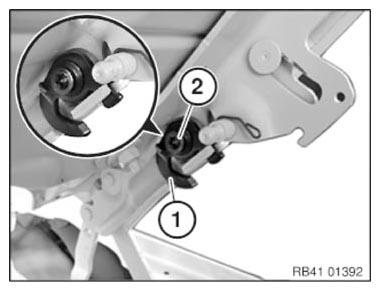

Check that fitted position of lever (1) is correct.

Position lever (1) in recess on bonnet hinge and tighten bolt (2).

Tightening torque 41 61 3AZ .

Repeat procedure on right side of vehicle.

Tightening torque 41 61 4AZ .

Fig 5: Identifying Lever And Bolt

G10142132

Courtesy of BMW OF NORTH AMERICA, INC.
