52 26 008 Removing and installing/replacing backrest side section on left or right rear seat backrest

Special tools required:

Necessary preliminary tasks:

Removal:

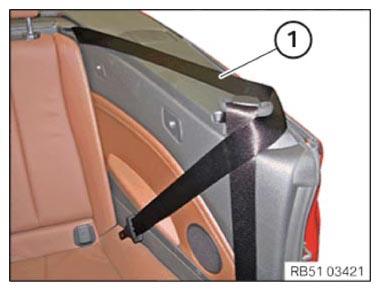

Remove the seat belt strap (1) from the working area.

Fig 1: Seat Belt Strap

Courtesy of BMW OF NORTH AMERICA, INC.

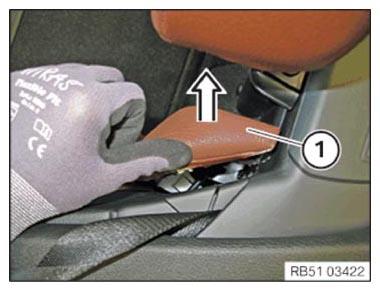

Lightly push the backrest side section (1) toward the center of the vehicle.

Fig 2: Pushing Backrest Side Section Toward Vehicle Center

Courtesy of BMW OF NORTH AMERICA, INC.

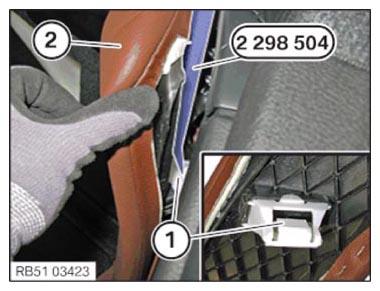

Press special tool 2 298 504 onto the lock (1) to release the backrest side section (2).

Pull the backrest side section (2) out toward the top.

Fig 3: Pressing Special Tool (2 298 504) Onto Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

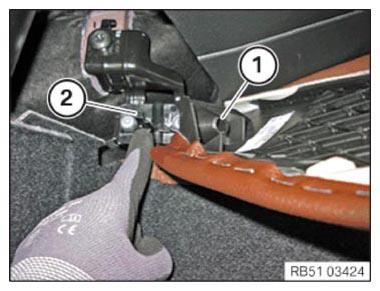

Slide the mounting (1) into the guide (2).

Fig 4: Sliding Mounting Into Guide

Courtesy of BMW OF NORTH AMERICA, INC.

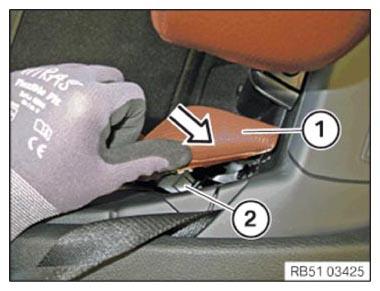

Push the backrest side section (1) in the direction of the arrow until the clip (2) can be heard latching.

Fig 5: Pushing Backrest Side Section

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:
