52 24 010 Remove and install rear seat backrest (basic seat)

Necessary preliminary tasks:

Removal:

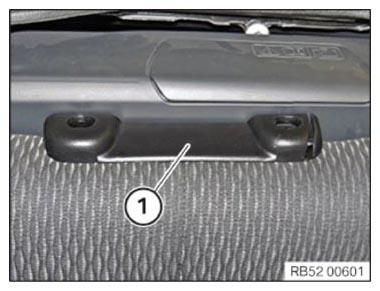

Pull off cover (1) on left and right forwards.

Fig 1: Rear Seat Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

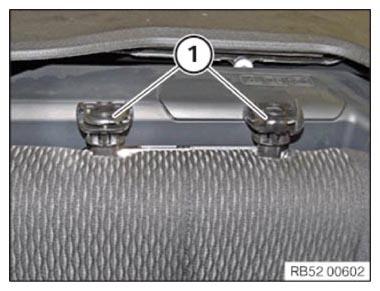

Pull up all guide sleeves (1) for head restraint, rear left and right up to the first catch.

Fig 2: Head Restraint Guide Sleeves

Courtesy of BMW OF NORTH AMERICA, INC.

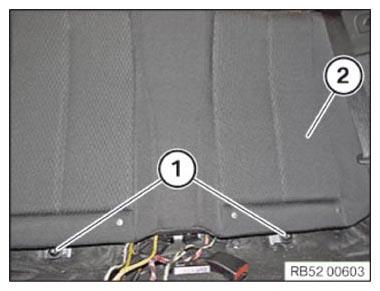

Release screws (1).

Raise rear seat backrest (2) upwards out of the guides and remove from the front.

Fig 3: Rear Seat Backrest And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Attach rear seat backrest (2) on the top to the guides and feed in towards the bottom.

Tighten down screws (1).

Tightening torque: 52 24 1AZ .

Fig 4: Rear Seat Backrest And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Press down all guide sleeves (1) for head restraints, rear left and right and engage.

Fig 5: Head Restraints Guide Sleeves

Courtesy of BMW OF NORTH AMERICA, INC.

Install left and right roof trim (1).

Fig 6: Left And Right Roof Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:
