51 45... Removing and installing/replacing side panel on dashboard on left or right

Special tools required:

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

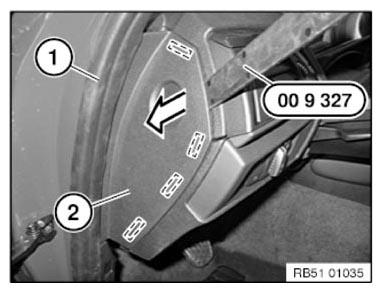

Pull off seal (1) in the area of the side panel (2).

Unclip side panel from dashboard (2) in direction of arrow with special tool 00 9 327 and feed out at a slant to the rear.

If necessary, unlock plug connection on switch for front passenger airbag deactivation and unplug.

Fig 1: Pulling Side Panel Seal Area

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

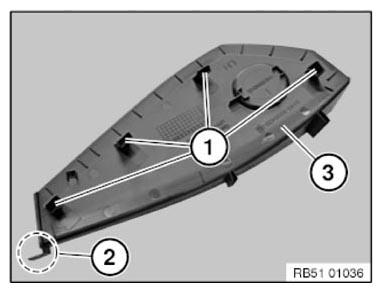

Latch mechanisms (1) and guide tab (2) on side panel (3) must not be damaged or missing.

Fig 2: Latch Mechanisms And Guide Tab On Side Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement (depending on version):
