61 31 079 Removing and installing/replacing switch for hazard warning flashers/central locking

Special tools required:

Carefully lever out switch for hazard warning system/central locking (1) with special tool 00 9 340 in direction of arrow.

Remove switch for hazard warning system/central locking (1) in direction of arrow and disconnect plug connection behind.

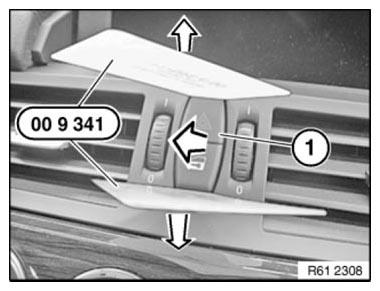

Fig 1: Removing Hazard Warning System/Central Locking Switch
G06911477Courtesy of BMW OF NORTH AMERICA, INC.
