61 31 037 Removing and installing/replacing light operating facility

Special tools required:

NOTE: When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

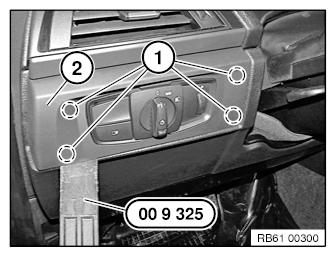

Lever out decorative trim (2) at the retaining points (1) using special tool 00 9 325 .

Fig 1: Removing Decorative Trim

Courtesy of BMW OF NORTH AMERICA, INC.

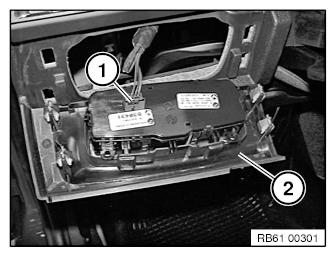

Unfasten plug connection (1) and disconnect.

Remove decorative trim with lighting operating facility (2).

Fig 2: Operating Facility And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

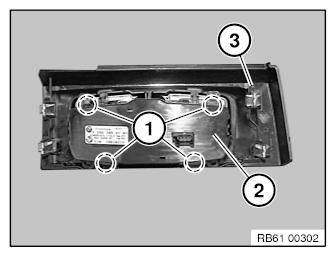

Unclip lighting operating facility (2) in area (1) and remove from the decorative trim (3).

Latch mechanisms in area (1) must not be damaged or missing.

Fig 3: Decorative Trim And Operating Facility

Courtesy of BMW OF NORTH AMERICA, INC.
