61 12 062 Replacing wiring harness for front bumper

IMPORTANT: Read and comply with NOTES ON HANDLING WIRING HARNESSES and cables.

Necessary preliminary tasks:

NOTE: Similar to graphic.

Unlock plug connections (1) for all ultrasonic sensors and disconnect.

Unclip wiring harness (2) from the bumper panel (3).

Remove wiring harness (2) from the bumper panel (3).

Installation note:

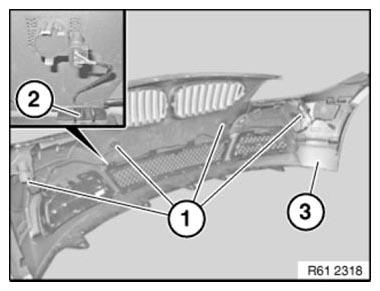

Fig 1: Ultrasonic Sensors Plug Connection And Bumper Trim Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure wiring harness (2) is laid correctly.
