63 99 273 Replacing bulb for turn indicator, front left

IMPORTANT: FOLLOW INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Unlock and remove cover (1).

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

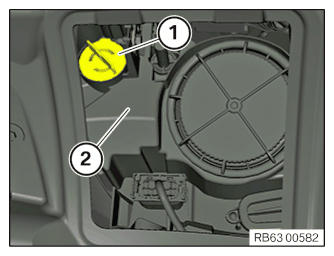

Turn bulb holder (1) to the left and remove from headlight (2).

IMPORTANT: Risk of damage due to moisture penetration!
Installation note:
Check seal. Replace bulb holder (1) if necessary.
Comply with INSTRUCTIONS FOR REPLACING THE PROTECTIVE CAP .
Turn bulb holder (1) clockwise to limit position.
Bulb holder (1) must lock correctly.

Fig 2: Identifying Headlight Driver Module And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Pull bulb (1) in direction of arrow out of bulb holder (2).

Installation note:

Note BULB TYPE .

Fig 3: Pulling Bulb Of Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.
