63 99 210 Replacing halogen bulb for left fog light
WARNING:
Follow the SAFETY INSTRUCTIONS FOR HANDLING BULBS/LIGHT SOURCES (EXTERIOR LIGHTS) .
Necessary preliminary tasks:
- Remove ORNAMENTAL GRILLE IN BUMPER TRIM (lateral)
NOTE:
Wheel arch panel is shown removed for purposes of clarity.

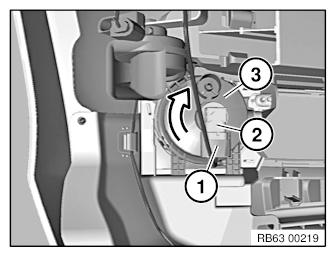

Unfasten plug connection (1) and disconnect.
Turn bulb holder (2) in direction of arrow and remove from fog light (3).
Installation note:
Note BULB TYPE .
