63 99 132 Replacing bulb for side lights, front left

WARNING: Follow the SAFETY INSTRUCTIONS FOR HANDLING BULBS/LIGHT SOURCES (EXTERIOR LIGHTS) .

Turn protective cap (1) counterclockwise and remove.

IMPORTANT: Risk of damage due to moisture penetration!
Installation note:
Check seal. Replace protective cap (1) if necessary.
Comply with INSTRUCTIONS FOR REPLACING THE PROTECTIVE CAP .
Protective cap (1) must lock correctly!
Turn protective cap (1) clockwise to limit position.

Fig 1: Identifying Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

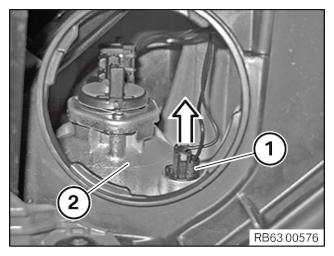

Pull bulb holder (1) in direction of arrow out of headlight (2).

Installation note:

Make sure bulb holder (1) is exactly seated in headlight (2).

Fig 2: Pulling Bulb Holder Of Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

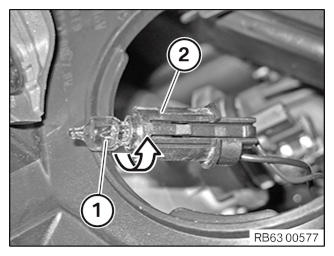

Firstly turn bulb for side lights (1) in direction of arrow and then pull out of bulb holder.

Installation note:

Note BULB TYPE .

Fig 3: Turning Side Lights Bulb

Courtesy of BMW OF NORTH AMERICA, INC.
